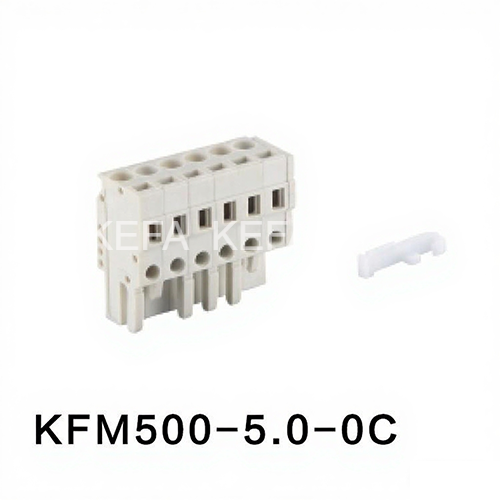

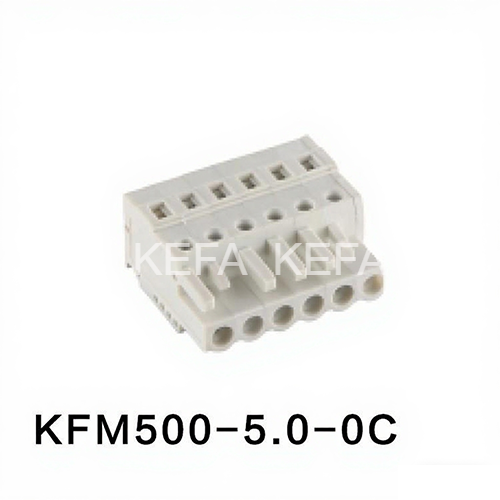

KFM500-5.0-0C（2-24P）

UL/CUL  技术参数

UL/CUL(Technical Data)

等级(Use Group)

B

C

D

额定电压(Rated Voltage) [V]

300

300

额定电流(Rated Current) [A]

10

10

接线范围(Wire Range)

单/多芯线(solid/Standed) [AWG]

耐电压(Withstanding Voltage)

AC1600V/1Min

IEC  技术参数

IEC(Technical Data)

过电压类别(Overvoltage Category)

|||

|||

||

污染级别(Contamination Class)

3

2

2

额定电压(Rated Voltage) [V]

320

320

630

额定电流(Rated Current) [A]

15

15

15

额定冲击电压(Impulse wiithstand voltagea) [KV]

4.0

4.0

4.0

导线截面积(Conductor cross section)

硬性/柔性导线(Solid/flexible)  [mm²]

材料(Material)

绝缘材料(Insulation Material)

热塑性材料Thermoplastic

阻燃等级(Imflammability)

导体材料(Contactor Material)

铜合金(Copper alloy)

导体表面镀层(Contactive Coating)

镀镍(Ni Plated)

一般参数(Other Data)

间距(Pitch) [mm]

5.0

级数(Poles) [P]

2-24

剥线长度(Stripping Length) [mm]

10-11

螺丝(Screw)

扭矩(Torque Max) [N.m]

工作温度(Operating temperatur)  [℃]

-40~+105

引针尺寸(Pin Dimensions)  [mm]

PCB板孔径(PCB Hole Diameter)  [mm]
