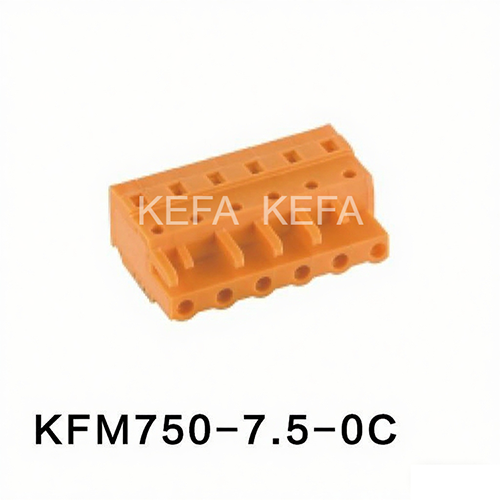

KFM750-7.5-0C（2-24P)

KFM750-7.5-0C-2P KFM750-7.5-0C-10P KFM750-7.5-0C-18P
KFM750-7.5-0C-3P KFM750-7.5-0C-11P KFM750-7.5-0C-19P
KFM750-7.5-0C-4P KFM750-7.5-0C-12P KFM750-7.5-0C-20P
KFM750-7.5-0C-5P KFM750-7.5-0C-13P KFM750-7.5-0C-21P
KFM750-7.5-0C-6P KFM750-7.5-0C-14P KFM750-7.5-0C-22P
KFM750-7.5-0C-7P KFM750-7.5-0C-15P KFM750-7.5-0C-23P
KFM750-7.5-0C-8P KFM750-7.5-0C-16P KFM750-7.5-0C-24P
KFM750-7.5-0C-9P KFM750-7.5-0C-17P

KFM750-7.5-0C

UL/CUL 技术参数 UL/CUL(Technical Data)
等级(Use Group)	B	C	D
额定电压(Rated Voltage) [V]	300		300
额定电流(Rated Current) [A]	10		10
接线范围(Wire Range) 单/多芯线(solid/Standed) [AWG]	28-12
耐电压(Withstanding Voltage)	AC1600V/1Min
IEC 技术参数 IEC(Technical Data)
过电压类别(Overvoltage Category)	\|\|\|	\|\|\|	\|\|
污染级别(Contamination Class)	3	2	2
额定电压(Rated Voltage) [V]	500	630	1000
额定电流(Rated Current) [A]	15	15	15
额定冲击电压(Impulse wiithstand voltagea) [KV]	6.0	6.0	6.0
导线截面积(Conductor cross section) 硬性/柔性导线(Solid/flexible) [mm²]	2.5
材料(Material)
绝缘材料(Insulation Material)	PA66
阻燃等级(Imflammability)	UL94V-0
导体材料(Contactor Material)	铜合金(Copper alloy)
导体表面镀层(Contactive Coating)	镀镍(Ni Plated)
一般参数(Other Data)
间距(Pitch) [mm]	7.5
级数(Poles) [P]	2-24
剥线长度(Stripping Length) [mm]	10-11
螺丝(Screw) 扭矩(Torque Max) [N.m]
工作温度(Operating temperatur) [℃]	-40~+105
引针尺寸(Pin Dimensions) [mm]
PCB板孔径(PCB Hole Diameter) [mm]
