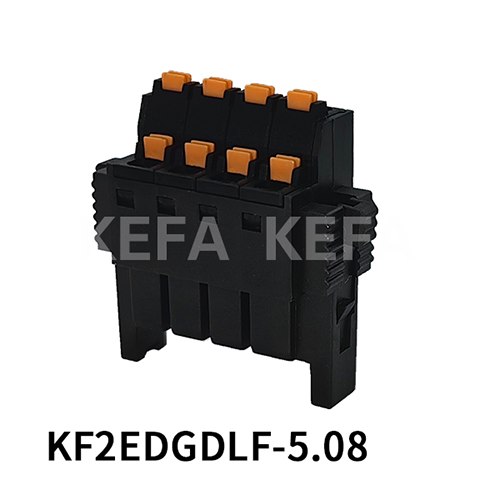

KF2EDGDLF-5.08 2x(02~20P)

KF2EDGDLF-5.08

UL/CUL  技术参数

UL/CUL(Technical Data)

等级(Use Group)

B

C

D

额定电压(Rated Voltage) [V]

300

300

额定电流(Rated Current) [A]

8

8

接线范围(Wire Range)

单/多芯线(solid/Standed) [AWG]

24-16

耐电压(Withstanding Voltage)

AC1600V/1Min

IEC  技术参数

IEC(Technical Data)

过电压类别(Overvoltage Category)

|||

|||

||

污染级别(Contamination Class)

3

2

2

额定电压(Rated Voltage) [V]

250

320

630

额定电流(Rated Current) [A]

14

14

14

额定冲击电压(Impulse wiithstand voltagea) [KV]

4

4

4

导线截面积(Conductor cross section)

硬性/柔性导线(Solid/flexible)  [mm²]

材料(Material)

绝缘材料(Insulation Material)

PA66

阻燃等级(Imflammability)

UL94V-0

导体材料(Contactor Material)

铜合金(Copper alloy)

导体表面镀层(Contactive Coating)

镀锡(Tin Plated)

一般参数(Other Data)

间距(Pitch) [mm]

5.08

级数(Poles) [P]

2x(02~20)

剥线长度(Stripping Length) [mm]

8~9

螺丝(Screw)

扭矩(Torque Max) [N.m]

工作温度(Operating temperatur)  [℃]

-40~+105

引针尺寸(Pin Dimensions)  [mm]

PCB板孔径(PCB Hole Diameter)  [mm]
