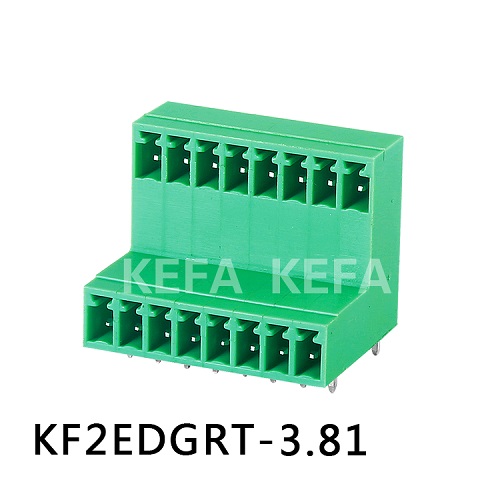

KF2EDGRT-3.81 2x(2-24P)

等级(Use Group)

B

C

D

额定电压(Rated Voltage) [V]

300

300

额定电流(Rated Current) [A]

8

10

接线范围(Wire Range)

单/多芯线(solid/Standed) [AWG]

耐电压(Withstanding Voltage)

AC1600V/1Min

IEC  技术参数

IEC(Technical Data)

过电压类别(Overvoltage Category)

|||

|||

||

污染级别(Contamination Class)

3

2

2

额定电压(Rated Voltage) [V]

160

320

额定电流(Rated Current) [A]

7

7

额定冲击电压(Impulse wiithstand voltagea) [KV]

2.5

2.5

导线截面积(Conductor cross section)

硬性/柔性导线(Solid/flexible)  [mm²]

材料(Material)

绝缘材料(Insulation Material)

热塑性材料Thermoplastic

阻燃等级(Imflammability)

导体材料(Contactor Material)

铜合金 (Copper alloy)

导体表面镀层(Contactive Coating)

镀锡 (Tin Plated)

一般参数(Other Data)

间距(Pitch) [mm]

3.81

级数(Poles) [P]

2x(2-24)

剥线长度(Stripping Length) [mm]

螺丝(Screw)

扭矩(Torque Max) [N.m]

工作温度(Operating temperatur)  [℃]

-40~+105

引针尺寸(Pin Dimensions)  [mm]

3.70

PCB板孔径(PCB Hole Diameter)  [mm]

1.40
