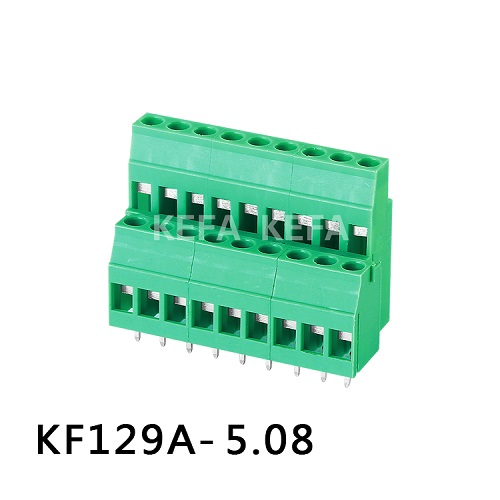

KF129A-5.08 2-24P 可拼接

等级(Use Group)

B

C

D

额定电压(Rated Voltage) [V]

300

300

额定电流(Rated Current) [A]

20

10

接线范围(Wire Range)

单/多芯线(solid/Standed) [AWG]

24-12

耐电压(Withstanding Voltage)

1600V/1Min

IEC  技术参数

IEC(Technical Data)

过电压类别(Overvoltage Category)

|||

|||

||

污染级别(Contamination Class)

3

2

2

额定电压(Rated Voltage) [V]

250

400

630

额定电流(Rated Current) [A]

22

22

22

额定冲击电压(Impulse wiithstand voltagea) [KV]

4.0

4.0

4.0

导线截面积(Conductor cross section)

硬性/柔性导线(Solid/flexible)  [mm²]

2.5

材料(Material)

绝缘材料(Insulation Material)

PA66

阻燃等级(Imflammability)

UL94V-0/UL94V-2

导体材料(Contactor Material)

铜合金 (Copper alloy)

导体表面镀层(Contactive Coating)

镀锡 (Tin Plated)

一般参数(Other Data)

间距(Pitch) [mm]

5.08

级数(Poles) [P]

2~24

剥线长度(Stripping Length) [mm]

6-7

螺丝(Screw)

扭矩(Torque Max) [N.m]

M3/0.5

工作温度(Operating temperatur)  [℃]

-40~+105

引针尺寸(Pin Dimensions)  [mm]

5.0

PCB板孔径(PCB Hole Diameter)  [mm]

1.4
