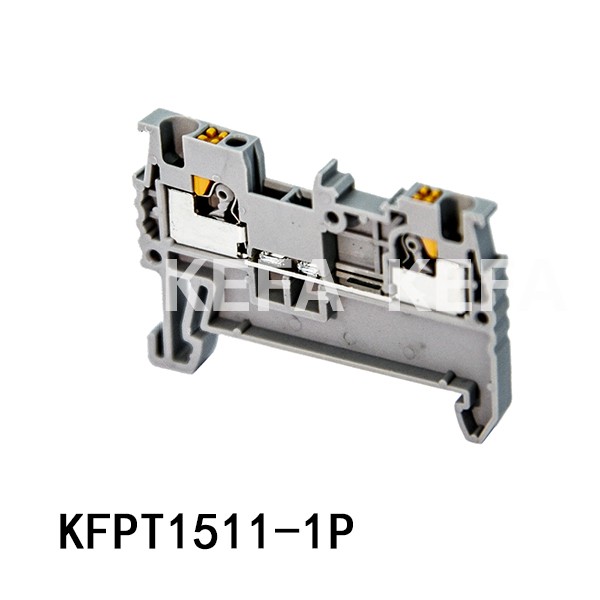

KFPT1511-1.5（01P）

KFPT1511-1.5 UL/CUL 技术参数 UL/CUL(Technical Data)
等级(Use Group)	B	C	D
额定电压(Rated Voltage) [V]	300	300	300
额定电流(Rated Current) [A]	15	15	10
接线范围(Wire Range) 单/多芯线(solid/Standed) [AWG]	26-12
耐电压(Withstanding Voltage)	1600V/1Min
IEC 技术参数 IEC(Technical Data)
过电压类别(Overvoltage Category)	\|\|\|
污染级别(Contamination Class)	3
额定电压(Rated Voltage) [V]	500
额定电流(Rated Current) [A]	17.5
额定冲击电压(Impulse wiithstand voltagea) [KV]	6.0
导线截面积(Conductor cross section) 硬性/柔性导线(Solid/flexible) [mm²]	0.14-1.5
材料(Material)
绝缘材料(Insulation Material)	PA66
阻燃等级(Imflammability)	UL94V-0
导体材料(Contactor Material)	铜合金(Copper alloy)
导体表面镀层(Contactive Coating)	镀锡(Tin Plated)
一般参数(Other Data)
间距(Pitch) [mm]	3.5
8级数(Poles) [P]	01P
剥线长度(Stripping Length) [mm]	8~10
螺丝(Screw) 扭矩(Torque Max) [N.m]
工作温度(Operating temperatur) [℃]	-40~+105
引针尺寸(Pin Dimensions) [mm]
PCB板孔径(PCB Hole Diameter) [mm]
