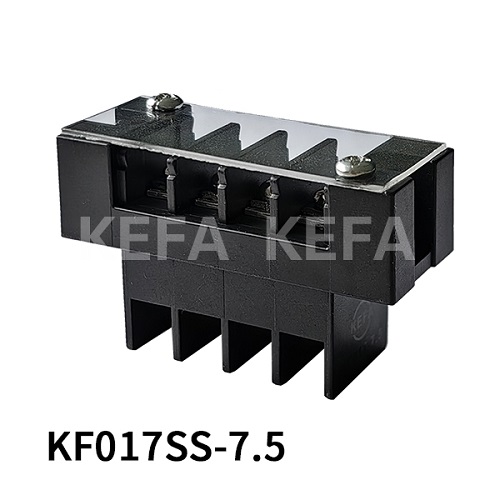

KF017SS-7.5 2-24P

等级(Use Group)

B

C

D

额定电压(Rated Voltage) [V]

300

额定电流(Rated Current) [A]

15

接线范围(Wire Range)

单/多芯线(solid/Standed) [AWG]

20-14

耐电压(Withstanding voltage)

1.6KV/1min

IEC  技术参数

IEC(Technical Data)

额定电压(Rated Voltage) [V]

450

额定电流(Rated Current) [A]

24

耐电压(Withstanding voltage)

2.5KV/1Min

导线截面积(Conductor cross section)

硬性/柔性导线(Solid/flexible)  [mm²]

2.5

材料(Material)

绝缘材料(Insulation Material)

PBT

阻燃等级(Imflammability)

UL94V-0

导体材料(Contactor Material)

铜合金 (Copper alloy)

导体表面镀层(Contactive Coating)

镀锡 (Tin Plated)

一般参数(Other Data)

间距(Pitch) [mm]

7.5

级数(Poles) [P]

2-24P

剥线长度(Stripping Length) [mm]

7~8

螺丝(Screw)

扭矩(Torque Max) [N.m]

M3/0.5

工作温度(Operating temperatur)  [℃]

-30℃~+120℃

引针尺寸(Pin Dimensions)  [mm]

PCB板孔径(PCB Hole Diameter)  [mm]
