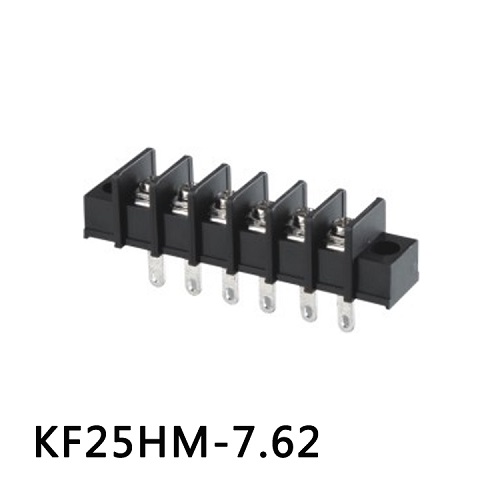

KF25HM-7.62 02-24P

KF25HM-7.62

UL/CUL 技术参数 UL/CUL(Technical Data)
等级(Use Group)	B	C	D
额定电压(Rated Voltage) [V]	300
额定电流(Rated Current) [A]	20
接线范围(Wire Range) 单/多芯线(solid/Standed) [AWG]	22-12
IEC 技术参数 IEC(Technical Data)
额定电压(Rated Voltage) [V]	250
额定电流(Rated Current) [A]	24
耐电压(Withstanding voltage)	AC2000V/1Min
导线截面积(Conductor cross section) 硬性/柔性导线(Solid/flexible) [mm²]	2.5
材料(Material)
绝缘材料(Insulation Material)	PA66
阻燃等级(Imflammability)	UL94V-0
导体材料(Contactor Material)	铜合金(Copper alloy)
导体表面镀层(Contactive Coating)	镀锡(Tin Plating)
一般参数(Other Data)
间距(Pitch) [mm]	7.62
级数(Poles) [P]	02-24
剥线长度(Stripping Length) [mm]
螺丝(Screw) 扭矩(Torque Max) [N.m]	M3/0.8
工作温度(Operating temperatur) [℃]	-40~+105
引针尺寸(Pin Dimensions) [mm]	10.3
PCB板孔径(PCB Hole Diameter) [mm]
